BC548 NPN Transistor data sheet and pinout

<img src="image_transistor BC548 pinout.jpg" alt="Transistor BC548 Pinout">

Features:


NPN silicon transistor.

High current gain (hFE) of typically 110-800.

Low collector-emitter saturation voltage.

Low noise and low power.


Absolute Maximum Ratings:


Collector-Base Voltage (VCBO): 30V

Collector-Emitter Voltage (VCEO): 30V

Emitter-Base Voltage (VEBO): 5V

Collector Current (IC): 100mA

Total Device Dissipation (PD): 500mW

Junction Temperature (TJ): 150°C

Storage Temperature Range (TSTG): -65 to 150°C

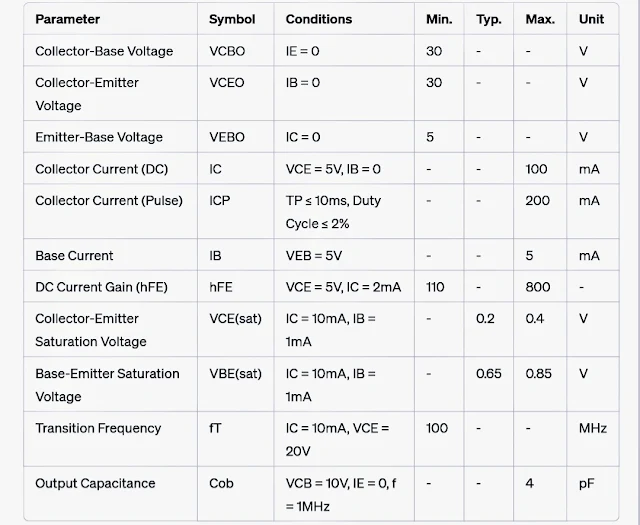

Electrical Characteristics (TA = 25°C unless otherwise specified):


Package Information:

The BC548 transistor is available in a TO-92 package.
