2N5877 transistor pinout Datasheet and applications
The 2N5877 is a popular NPN power transistor widely used in high-current, high-voltage applications. With its durable construction and ability to handle substantial currents, this transistor finds its way into various electronic projects and equipment. This blog post will cover everything you need to know about the 2N5877, including its pinout, specifications from the datasheet, applications, replacement options, and compatible equipment.
1. Overview of the 2N5877 Transistor
The 2N5877 is a silicon NPN transistor designed for power applications that require high currents and high voltages. Known for its robust design and reliability, it’s ideal for applications involving switching and amplification. This transistor is frequently used in power supply circuits, motor controls, and other industrial applications.

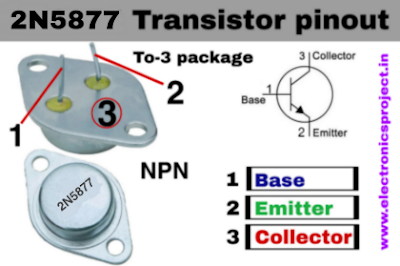

2. 2N5877 Pinout
The 2N5877 transistor is typically available in a TO-3 metal can package, which is common for high-power transistors. This package helps dissipate heat effectively, making it suitable for high-power applications. The TO-3 package has two primary pins and a metal casing that acts as the collector.
- Pin 1 (Base): This pin controls the transistor’s operation, receiving input signals to turn the transistor on or off.
- Pin 2 (Emitter): This is the output pin, where current flows out.
- Collector (Case): The metal casing itself acts as the collector, which is connected to the load.
3. Key Specifications from the 2N5877 Datasheet
Understanding the datasheet parameters of the 2N5877 helps you determine its suitability for your application. Here are some key specifications:
| Parameter | Value |
|---|---|
| Transistor Type | NPN |
| Maximum Collector Current (Ic) | 30A |
| Maximum Collector-Emitter Voltage (Vce) | 140V |
| Maximum Power Dissipation (Pd) | 300W |
| DC Current Gain (hFE) | 15–60 |
| Operating Temperature | -65°C to 200°C |
These characteristics make the 2N5877 an excellent choice for applications that require high current and voltage handling with stable performance under various operating conditions.
4. Applications of the 2N5877 Transistor
The 2N5877 transistor is well-suited for a variety of power applications, including:
- Power Supplies: The 2N5877 is often used in linear and switching power supplies due to its high voltage and current handling.
- Motor Controllers: Its ability to switch high currents makes it ideal for DC motor control circuits.
- Amplifiers: With its high power dissipation capability, it can be used in power amplifier stages in audio and RF applications.
- Industrial Controls: The transistor’s durability and reliability make it suitable for industrial equipment like relays, solenoids, and actuator controls.
5. Replacement Options for the 2N5877
In case the 2N5877 is unavailable, some equivalent transistors can be used as replacements, provided they meet the necessary parameters:
- MJ15022: Similar in electrical characteristics and pin configuration.
- 2N3773: Another high-power NPN transistor with comparable ratings.
- TIP3055: For applications with slightly lower power requirements, the TIP3055 can be a suitable replacement.
It’s essential to verify the specific requirements of your application when choosing a replacement transistor to ensure reliable performance.
6. Equipment Using the 2N5877 Transistor
The 2N5877 can be found in various types of equipment, especially where robust power handling is required:
- Industrial Power Supplies: Used in equipment requiring stable, high-power outputs.
- Audio Amplifiers: High-power audio amplifiers frequently use the 2N5877 in output stages.
- Motor Drivers and Control Systems: The transistor’s high current handling is ideal for motor drivers and other control systems where high power is needed.
7. Tips for Working with the 2N5877
To get the most out of the 2N5877 transistor, consider these tips:
- Heat Dissipation: Since it can handle high currents, it may generate considerable heat. Always use appropriate heat sinks and ensure sufficient ventilation.
- Check Biasing Requirements: Ensure the base current and other biasing parameters are set correctly according to the datasheet for optimal performance.
- Verify Replacement Ratings: When using substitute transistors, double-check the voltage, current, and power ratings to avoid circuit issues.
Conclusion
The 2N5877 transistor is a versatile and powerful NPN transistor designed to handle high currents and voltages, making it ideal for heavy-duty applications. Whether you’re building power supplies, motor controllers, or industrial equipment, understanding the pinout, datasheet, applications, and possible replacements for the 2N5877 is crucial for successful circuit design and maintenance.
By following the tips provided and carefully considering the specific requirements of your project, the 2N5877 can be a valuable component in your electronic toolkit.
