S9015 Transistor Pinout, Datasheet, Applications, and Replacement Equivalents

Introduction

The S9015 is a popular PNP transistor widely used in various electronic circuits due to its versatility and affordability. Understanding its pinout, datasheet specifications, applications, and equivalent replacements can help engineers and hobbyists alike make the most out of this component.

Pinout Configuration

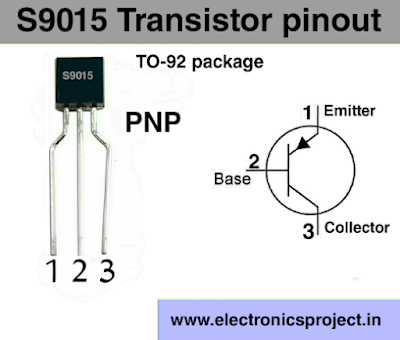

S9015 transistor pinout

The S9015 transistor has a standard TO-92 package with three pins:

  1. Emitter (E): Connected to the negative side of the circuit or ground in most applications.

  2. Base (B): The control terminal that regulates the flow of current between the emitter and collector.

  3. Collector (C): Connected to the load, allowing current to flow when the transistor is activated.

When viewed from the flat side of the TO-92 package with the pins facing downward, the pin configuration is as follows:

  • Pin 1: Emitter

  • Pin 2: Base

  • Pin 3: Collector

Datasheet Specifications

Here are some key specifications of the S9015 transistor:

ParameterValue
Transistor TypePNP
Collector-Emitter Voltage (VCEO)-45V
Collector-Base Voltage (VCBO)-50V
Emitter-Base Voltage (VEBO)-5V
Collector Current (IC)-0.8A
Power Dissipation (Ptot)625mW
DC Current Gain (hFE)100 to 300
Operating Temperature Range-55°C to +150°C

Applications

The S9015 transistor is suitable for various applications, including:

  1. Switching Circuits: Acts as an electronic switch to control devices such as relays, LEDs, and motors.

  2. Amplifiers: Used in low-power signal amplification circuits.

  3. Oscillators: Plays a crucial role in signal generation circuits.

  4. Voltage Regulators: Utilized in stabilizing and controlling voltage levels in circuits.

  5. Current Drivers: Serves as a current driver in low-power applications.

Replacement Equivalents

If an S9015 is unavailable, several equivalent transistors can be used as substitutes, provided the specifications match your circuit’s requirements. Here are some commonly used replacements:

  1. BC557: A widely used PNP transistor with similar voltage and current ratings.

  2. 2N2907: Another PNP transistor with a slightly higher current rating.

  3. A1015: Shares similar characteristics and is often used in audio applications.

  4. S8550: Suitable for similar applications with comparable specifications.

When replacing, ensure to verify the pinout configuration, as it may differ between transistor models.

Practical Tips for Usage

  1. Always check the datasheet to confirm compatibility with your application.

  2. Use an appropriate base resistor to limit the base current and protect the transistor.

  3. Ensure adequate heat dissipation by staying within the power dissipation limits.

  4. Verify the transistor’s orientation and pin configuration before soldering.

Conclusion

The S9015 transistor is a reliable and versatile component for electronic circuits. Its wide range of applications and availability of equivalent replacements make it an excellent choice for both beginners and professionals. By understanding its specifications and usage guidelines, you can effectively integrate it into your projects.

Feel free to experiment with the S9015 in your circuits and explore its capabilities. Happy tinkering!
